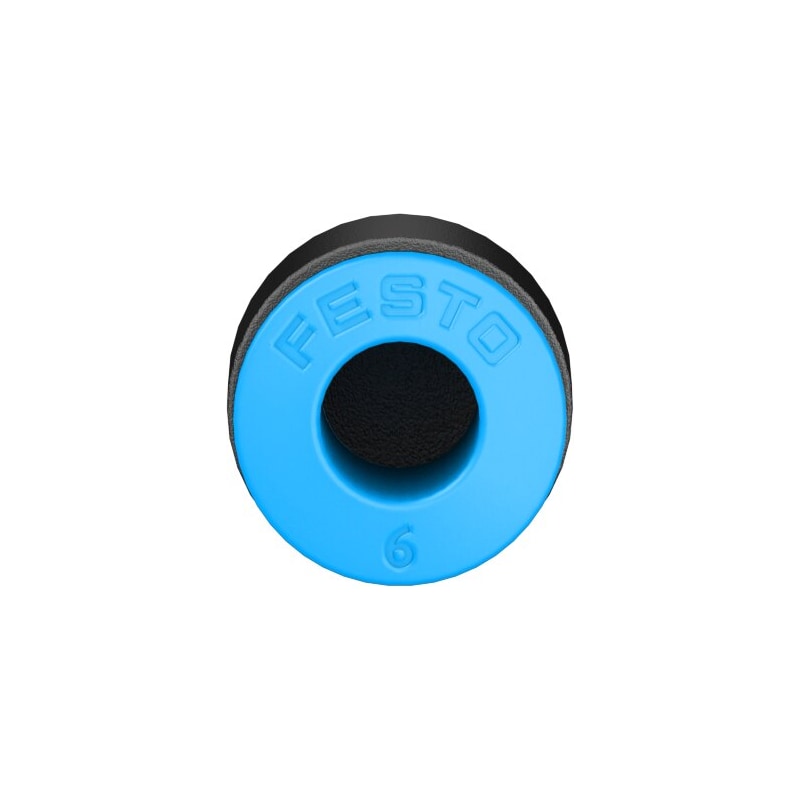

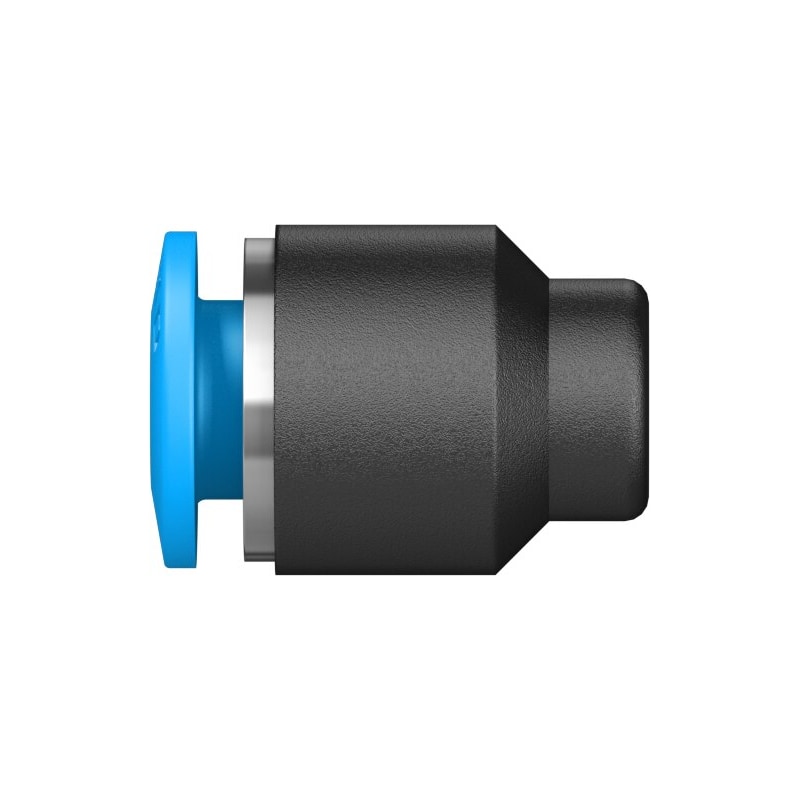

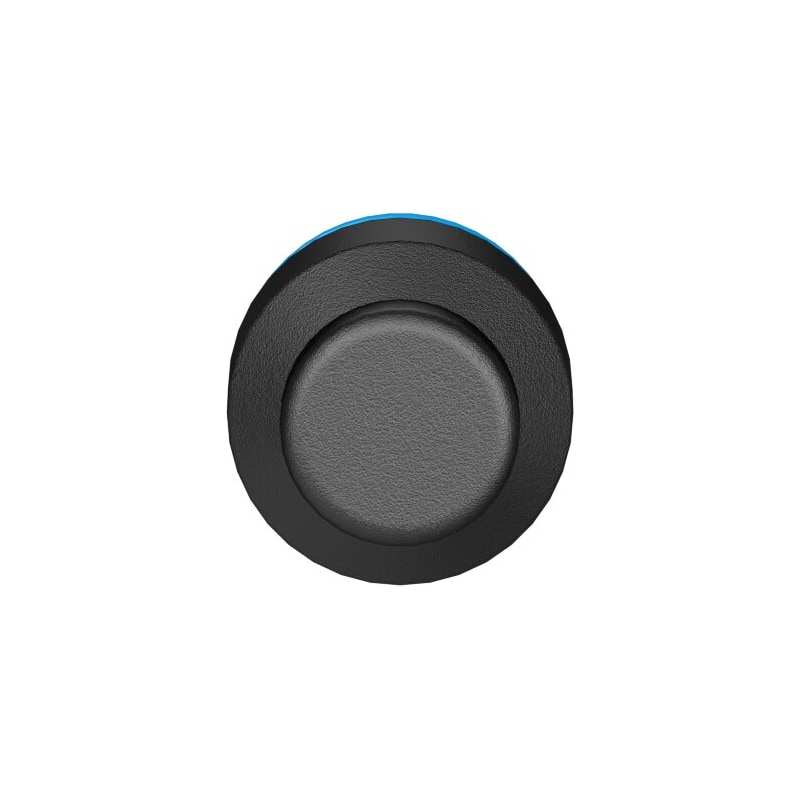

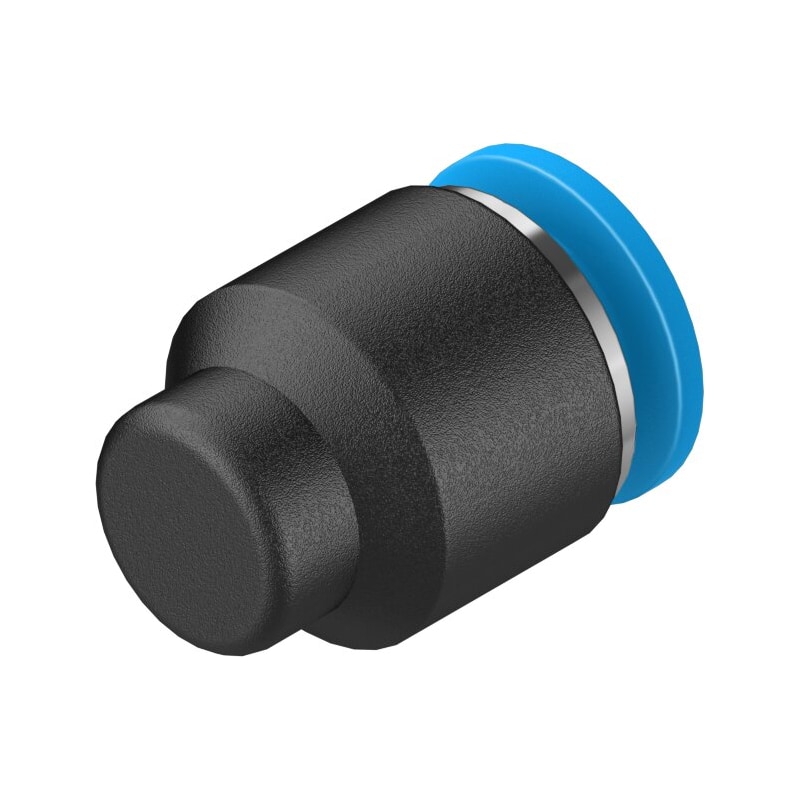

QSC-1/4-U push-in cap (Pack of 10)

$18.30

Pack of 10

SKU: 153830 Category: Tag: Brand:

push-in cap QSC-1/4-U Size=Standard, Nominal size=3,8 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle

Fitting TypePush-in Plug
Size Standard
Nominal size 3.8 mm
Assembly position Any
Container size 1
Design structure Push/pull principle
Operating pressure complete temperature range ‘-0.95 … 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 – Low corrosion stress
Ambient temperature ‘-10 … 60 °C
Maritime classification see certificate
Product weight 3.5 g
connection 1 1/4″ outside diameter, for tubing
Colour of release ring Grey
Materials note Conforms to RoHS
Material housing PBT
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
Fitting Type

Push-in Plug

Size

Standard

Nominal size

3.8 mm

Assembly position

Any

Container size

1

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 10 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 60 °C

Maritime classification

see certificate

Product weight

3.5 g

connection 1

1/4" outside diameter, for tubing

Colour of release ring

Grey

Materials note

Conforms to RoHS

Material housing

PBT

Material release ring

POM

Material of tubing seal

NBR

Material of tube retaining claw

High alloy steel, non-corrosive
